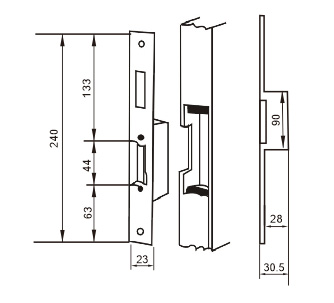

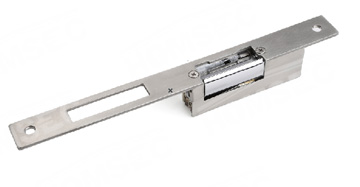

Lock body: Zinc Die-cast;240*23*30.5mm
Lock catch: brass; 47*14*17mm
Front plate: SS304; 240*23*2.5mm
Deadbolt hole: 55*12mm
Working voltage: 12V DC
Operating current: 0.17A fail secure;0. 14A fail safe
The opening angle:90°
Security mode: Fail safe( Power on-locking)
Fail secure(Power on-unlocking)
Door signal output: customized
Test over 500000 cycles
